Product Detail

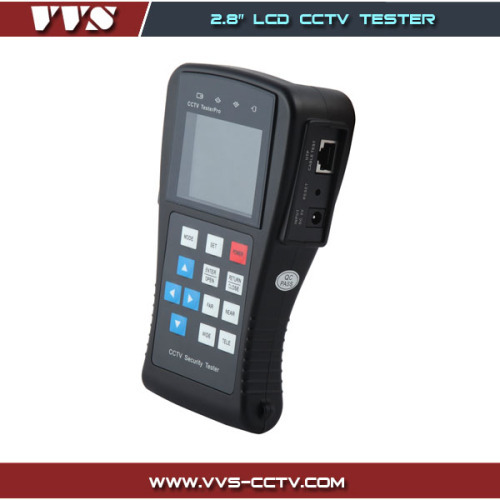

Model No.: T900-A

CCTV Tester, Surveillance Products

MODEL		T900-ACCTV Security Tester PRO
Video Test
Signalmode		NTSC/PAL (Auto adapt)
Display		2.8 inchdigital TFT-LCD ,960 x 240 resolution
LCDadjustment		Brightness, Contrast, Saturation adjustable
VideoIN/OUT		1 channel BNCInput & 1 channel Output
VideoOutput Mode		1.0 Vp-p
Video Signal Intensity Testing
PTZ controller
Communication		RS232, RS422simplex and RS485
PTZ Protocol		Compatible with morethan 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate		150,300,600,1200,2400,4800,9600,19200bps
Video Signal Generation
Colorbar generation		Output channel color bar video signal for testingmonitor or video cable
UTP CABLE TEST
UTPcable test		Test UTP cable connection status and display in thescreen. Read the number of the test box.
RS485 data analyst
Data Monitor	Captures and analyzes the command data from controlling device
POWER
PowerAdapter	DC5V, 2A
Battery	Built-in 3.7V Lithiumpolymer battery ,3000mAh
Rechargeable	After charging 3-4 hour,working time lasts 11 hours
Low Consumption	Energy savingtechnology
General
Working Temperature	-30℃---+70℃
Working Humidity	30%-90%
Dimension/Weight	176mmx94mmx36mm/340g
